A snack manufacturer installs a standard industrial conveyor for food product transport. Result: Product breakage, inconsistent speed, difficult cleaning. FDA inspection identifies product contamination risk (gaps harbor insects/pathogens).
A compliant manufacturer selects a sanitary food-grade conveyor with stainless steel structure, smooth surface, proper slope, and speed control. Reduces product damage to under 2%, ensures food safety compliance, improves throughput.
Conveyor selection and design directly impact product quality, food safety, and operational efficiency.
The Conveyor System Framework
Key Conveyor Selection Criteria:
- Product Characteristics: Weight, size, fragility, moisture
- Throughput: kg/hour required
- Distance: Length and inclination angle
- Food Safety: Contamination prevention, cleanability
- Environment: Temperature, humidity, sanitation requirements
- Integration: Connection to upstream/downstream equipment
Conveyor Belt Types
Flat Belt Conveyors:
- Application: Horizontal or slight incline transport
- Speed: 0.5-2.0 m/s typical
- Load capacity: Depends on belt width (300-800 mm)
- Material: Food-grade PVC, rubber, or modular plastic
- Advantages: Simple, cost-effective, uniform product flow
- Disadvantages: Limited slope capability, friction losses

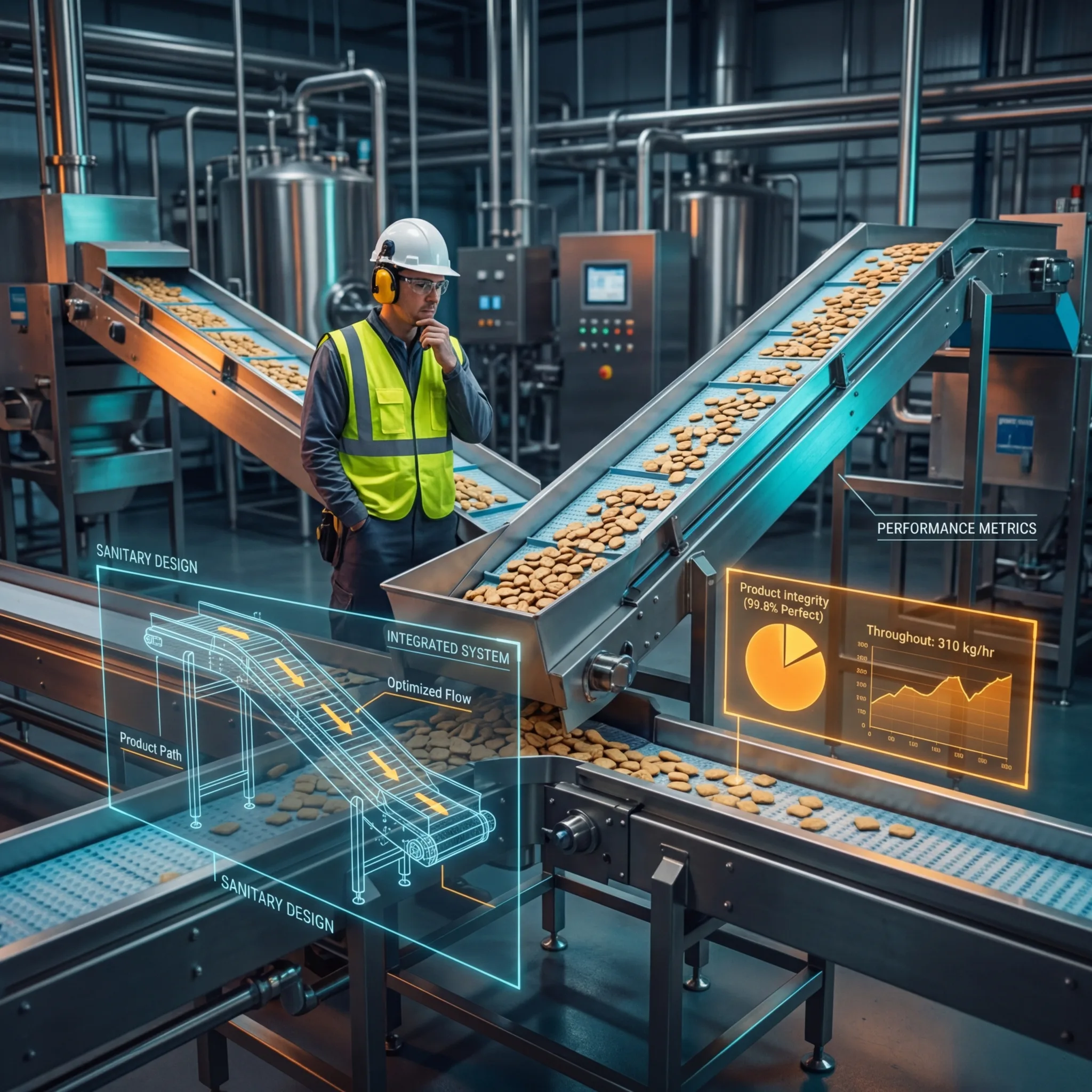

Inclined/Decline Conveyors:
- Angle: Up to 45 degrees with proper surface (rubber, PVC)
- Load capacity: Reduced (gravity working against motion)
- Application: Multi-level facility layout
- Speed control: Essential (prevent product rolling)
- Calculation: Friction coefficient must exceed angle tangent
Modular Plastic Belt:
- Design: Interlocking plastic modules on metal frame
- Advantage: Easy to disassemble for cleaning
- Application: Wet or washdown environments
- Hygienic design: NSF/ANSI 51 compliant
- Cost: Premium vs. standard belts
Roller Conveyors:
- Design: Series of rotating rollers on frame
- Application: Individual product units or trays
- Advantages: Minimal friction, precise product control
- Disadvantages: Gaps between rollers (contamination risk), noisier
- Spacing: under 25 mm for small product prevention
Screw Conveyors:
- Design: Rotating screw blade in enclosed housing
- Application: Bulk powder/granule transport
- Advantages: Fully enclosed (contamination prevention)
- Disadvantages: Product degradation risk, difficult cleaning
- Slope: Horizontal to 45 degrees maximum
Conveyor Design Parameters
Throughput Calculation:
Throughput (kg/h) = Belt width (m) x Belt speed (m/s) x Product bulk density (kg/m3) x 3,600
Example: 0.6 m wide belt, 1.0 m/s speed, 800 kg/m3 bulk density = 0.6 x 1.0 x 800 x 3,600 = 1,728 kg/h
Inclination Analysis:
For inclined conveyors:
- Friction coefficient (mu) varies by belt material (0.3-0.6 food belt)
- Maximum angle: arctan(mu) = angle where product stops sliding
- Design slope: Typically 70% of maximum (safety factor 1.4)
Example: mu = 0.5, max angle = arctan(0.5) = 26.6 degrees, design slope is approximately 19 degrees
Motor Power Calculation:
Power (kW) = (Product load x gravitational acceleration x distance + friction losses) / efficiency
Typical conveyor power: 0.5-2 kW per 10 meters length
Sanitary Design Features
NSF/ANSI 51 Requirements:
| Feature | Specification |
|---|---|
| Surface finish | Smooth, non-corrosive (Ra under 0.8 micrometers) |
| Belt material | Food-grade stainless or approved polymer |
| Frame | Stainless steel or epoxy-coated carbon steel |
| Gaps | Under 6 mm to prevent product trapping |
| Fasteners | Sanitary screws (flush mount) or welded |
| Drainability | Drain holes at low points, no pooling |
| Cleanability | Easy access for cleaning, CIP compatible |
Speed Control:
- Adjustable speed (VFD) enables: slow startup (reduced spill), speed matching to downstream equipment
- Constant speed: Simpler, lower cost, less flexible
- Typical food conveyor speed: 0.5-1.5 m/s (adjustable +/-20%)
Integration with Process Line
Upstream Connection:
- Discharge height from mixer/former
- Impact protection (guide chutes)
- Product flow uniformity
Downstream Connection:
- Speed matching to packaging equipment
- Surge capacity (buffer storage)
- Height adjustment for equipment coupling
Cost-Benefit Analysis
| Type | Capital | Operating | Maintenance | Food Safety |
|---|---|---|---|---|
| Standard industrial | Low | Moderate | High | Poor |
| Sanitary food-grade | High | Moderate | Low | Excellent |
| Modular plastic | Medium | Moderate | Low | Excellent |
For food manufacturing companies, proper conveyor system selection ensures product quality, food safety compliance, and operational efficiency.
